What are the machining processes?

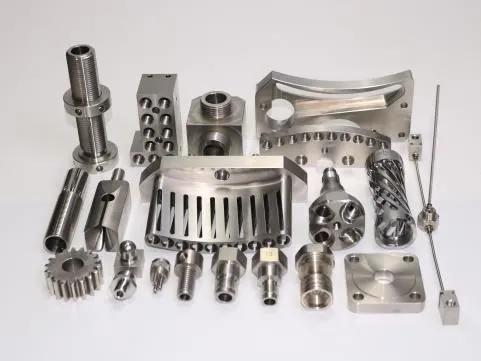

Metal parts processing is a vital part of the manufacturing industry, covering a variety of metal products from small fasteners to large mechanical components. Whether in aerospace, automotive manufacturing, medical equipment or other fields, metal parts are essential. This article takes an in-depth look at the metal parts machining process to explain how to create high-quality metal parts from design to finished product.
Step 1: Design and Planning
The first step in metal parts processing is design and planning. During this stage, engineers and designers will develop design drawings of the part based on requirements and specifications. These drawings include important information such as the size, shape, material requirements, tolerances, etc. of the part. Designers use computer-aided design (CAD) software to create detailed three-dimensional models, which help ensure design accuracy and feasibility.
Step 2: Material Selection
Once the design drawings are finalized, the next step is to select the appropriate metal material. Different applications require different materials, such as:
Steel: Often used in parts that require high strength, such as automotive engine parts and industrial machinery.
Aluminum alloy: suitable for lightweight parts such as aircraft components and electronic equipment housings.
Copper: Commonly used in electrical conductors and heat transfer parts.
Stainless steel: Resistant to corrosion and suitable for use in food processing equipment and medical devices.
Titanium alloy: Used in aerospace and medical fields, it has high strength and low density.
Step 3: Raw material preparation
After selecting the appropriate material, raw materials need to be prepared for subsequent processing. This usually involves cutting or cutting large metal plates, rods or tubes to obtain workpieces close to the design dimensions. Precise cutting is a critical step in ensuring part quality.
Step 4: Rough machining
Rough machining is the process of transforming raw materials from a rough shape to a near-final shape. This can include:
Milling: Using a milling machine to remove excess material layer by layer to obtain the desired shape.
Turning: Using a lathe to turn a workpiece and cut it with a tool to achieve the desired size and surface quality.
Drilling: Adding holes and apertures to a part by rotating a tool.
Sawing: Used to cut long materials such as pipes or rods.
Step 5: Finishing
Finishing is performed after roughing and is used to further improve the accuracy and surface quality of the part. This includes:
Grinding: The removal of material through grinding operations improves surface quality and dimensional accuracy.
Reaming: Used to create threads and holes.
Turning center hole: used to ensure the center position of the hole.
Honing: Used to improve the accuracy of gears and gear profiles.
Step 6: Heat Treatment
Certain metal parts undergo a heat treatment process to increase their hardness, strength and wear resistance. Heat treatment typically involves heating the part to a specific temperature and then rapidly cooling it, which helps change the material's lattice structure.
Step 7: Surface Treatment
Surface treatment is performed to improve the corrosion resistance, lubricity and appearance of parts. Common surface treatment methods include:
Plating: Applying a layer of metal to the surface of a part to increase its resistance to corrosion.
Spray: Apply a protective coating to reduce wear and corrosion.
Polishing: Improving surface quality by removing surface impurities and blemishes.
Step 8: Quality Control and Inspection

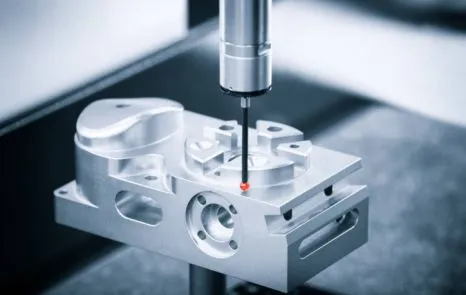

Finally, manufactured parts undergo strict quality control and inspection. This includes dimensional measurements, shape inspections, material testing and surface quality assessments. Only parts that pass quality control are used for final assembly.
Conclusion
Metal part machining is a complex, multi-step process involving multiple specialized skills and equipment. Precision metal parts manufacturing requires strict quality control and a high degree of process accuracy. From design and material selection to final inspection and quality control, every step is critical to ensure high-quality parts are manufactured to specifications. These parts play a vital role in various industries.
